US stock - ships from Hayward, CA. Fitment tip: Confirm Briggs OEM# 593934/693551 and 14-tooth starter match before order. SKU 1PZ98HL07E.
Spec: 14-tooth electric starter - replaces Briggs and Stratton 593934 / 693551 style; confirm flywheel teeth and mounting.

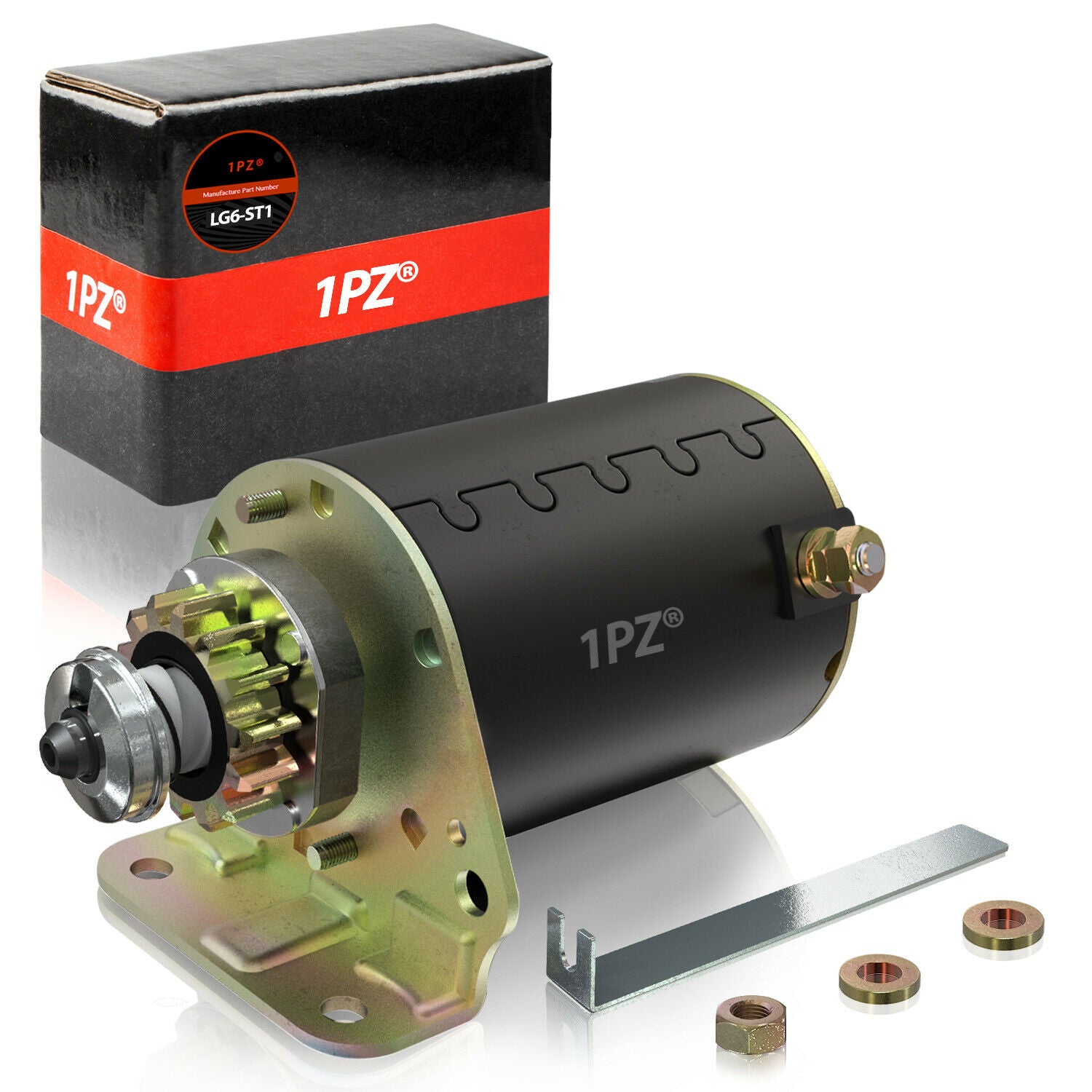

12V, 14-tooth starter motor for select Briggs & Stratton lawn tractor and mower engines. Match the reference number, mounting pattern, rotation and gear before ordering.
Specifications
- Voltage: 12V
- Drive gear: 14 teeth
- Rotation: counterclockwise (CCW), as listed
- Package: 1 starter motor in 1PZ packaging
Reference numbers
593934, 693551, 410-22027, 410-22051, LG693551, SE501848, BS693551, SBS0029, MIA13018, 113853, 030221, 435-300 and other listed cross-references.
Reference applications
Used on select Briggs & Stratton-powered lawn tractors and mowers, including certain John Deere L100, L105, L107, LA105, LA115 and LA125 configurations, plus compatible Sabre, New Holland, Toro and Cub Cadet applications.
Horsepower and equipment model alone do not confirm fitment because manufacturers may use different engines and starters within the same model family.
Verify before ordering
- Original starter or engine reference number
- 12V electrical system
- 14-tooth drive gear
- CCW rotation

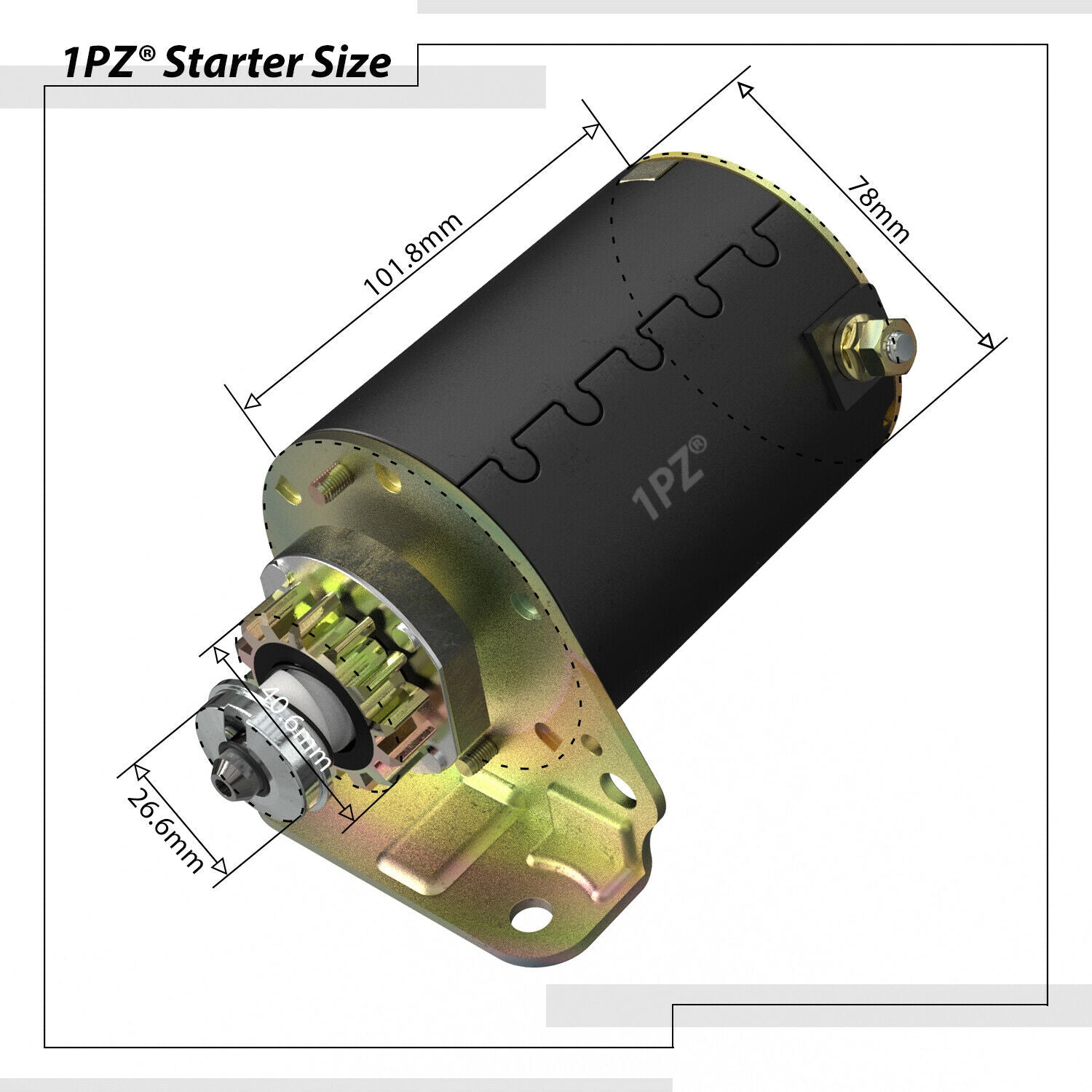

- Mounting-hole spacing and nose/housing shape
- Terminal position and available clearance
Installation note
Disconnect the battery before service. Inspect battery condition, cables, grounds, solenoid and flywheel ring gear before replacing the starter. Tighten connections to the equipment manufacturer’s specification and verify safe operation before use.
