Regular price $19.99

 Introduction:
This will replace ignitions using a Points Ignition, and Coil and CDI are two separate parts.
Mounting size may be different and modification is needed, use coppe wire to hold instead of a screw.
 Specifications:
90 Degree Elbow
Voltage: 12 volts
Single Output

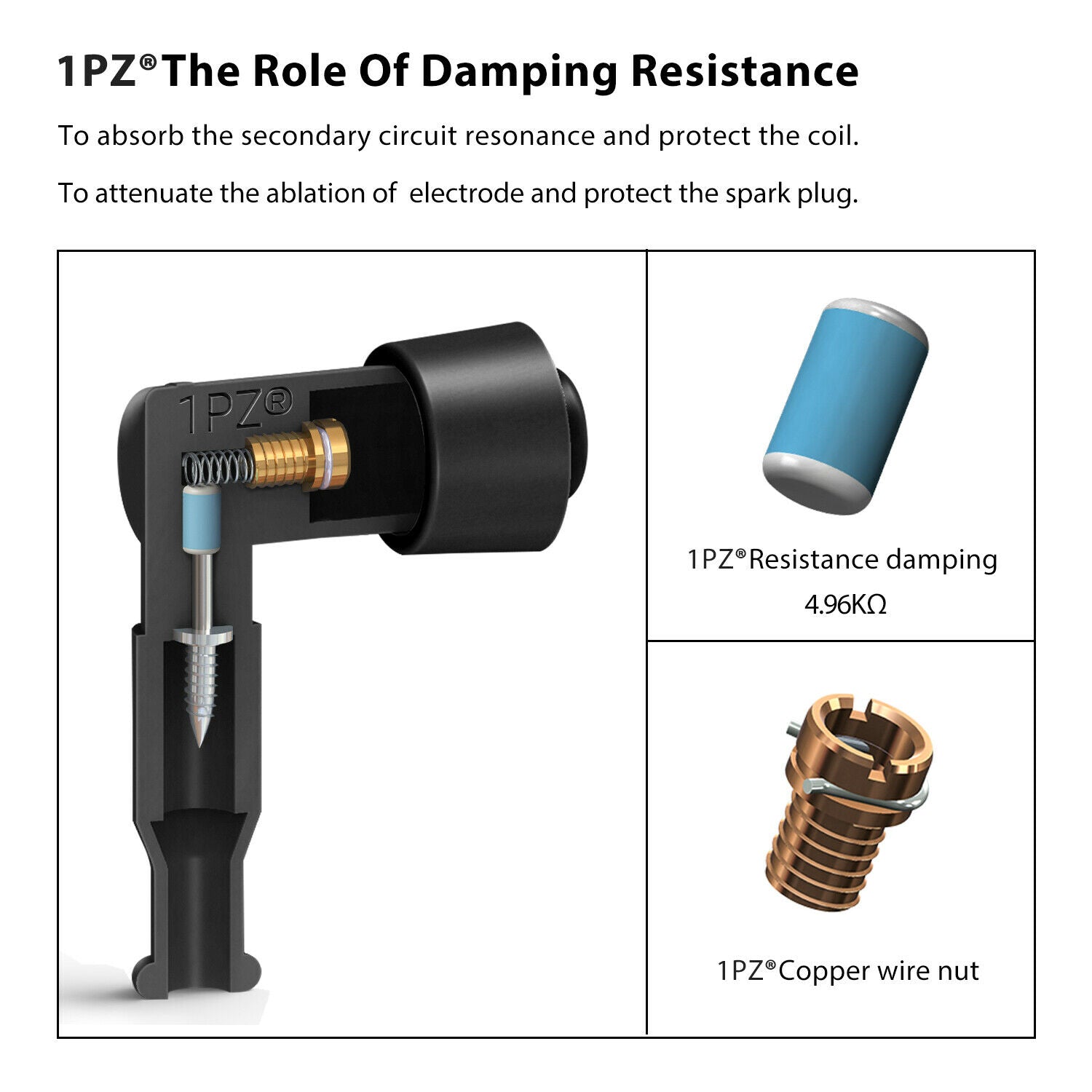

Spark plug cap resistance: ≈4.96 KΩ

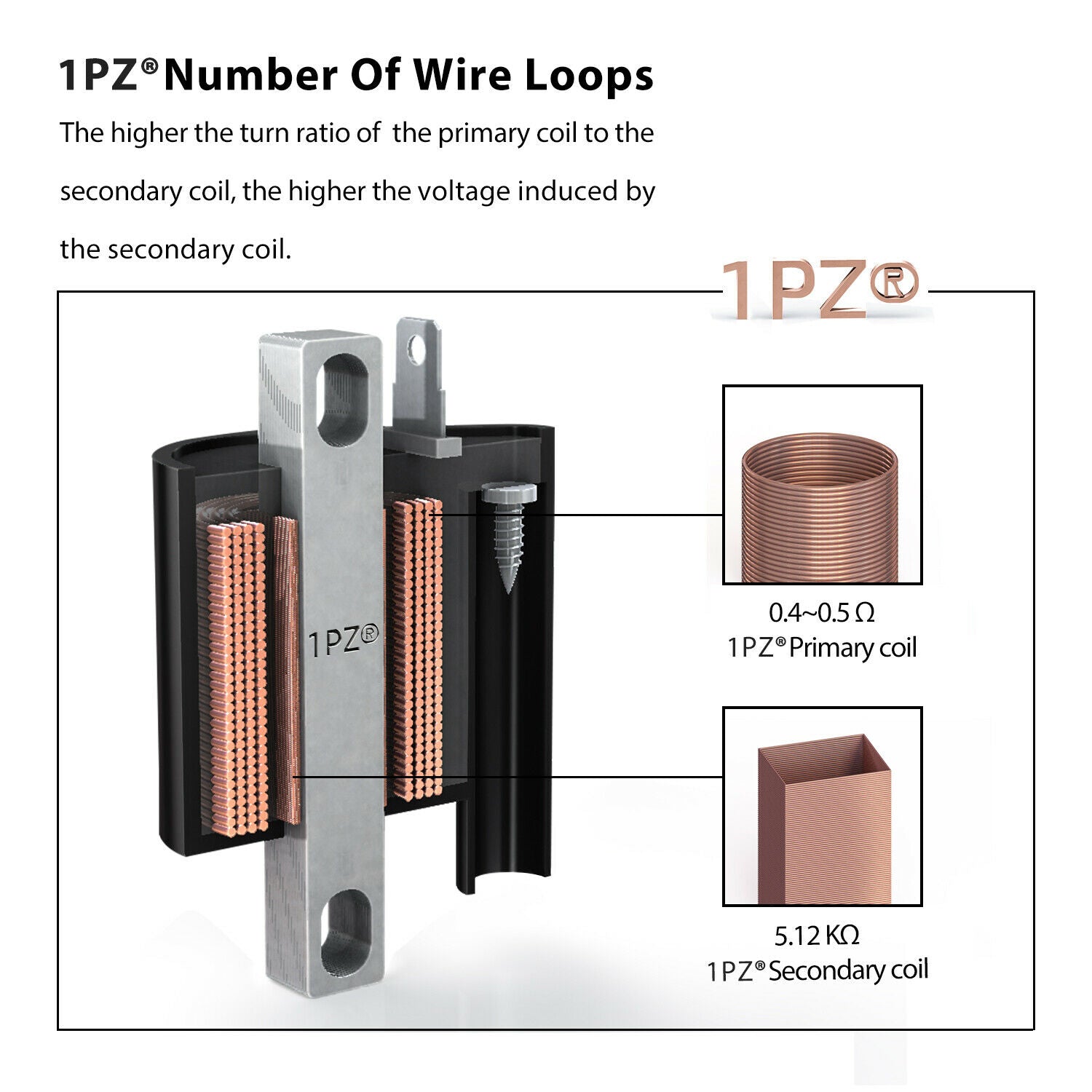

Measuring 1PZ primary coil: ≈0.4~0.5Ω
Measuring 1PZ secondary coil: ≈5.12 KΩ
 Note:

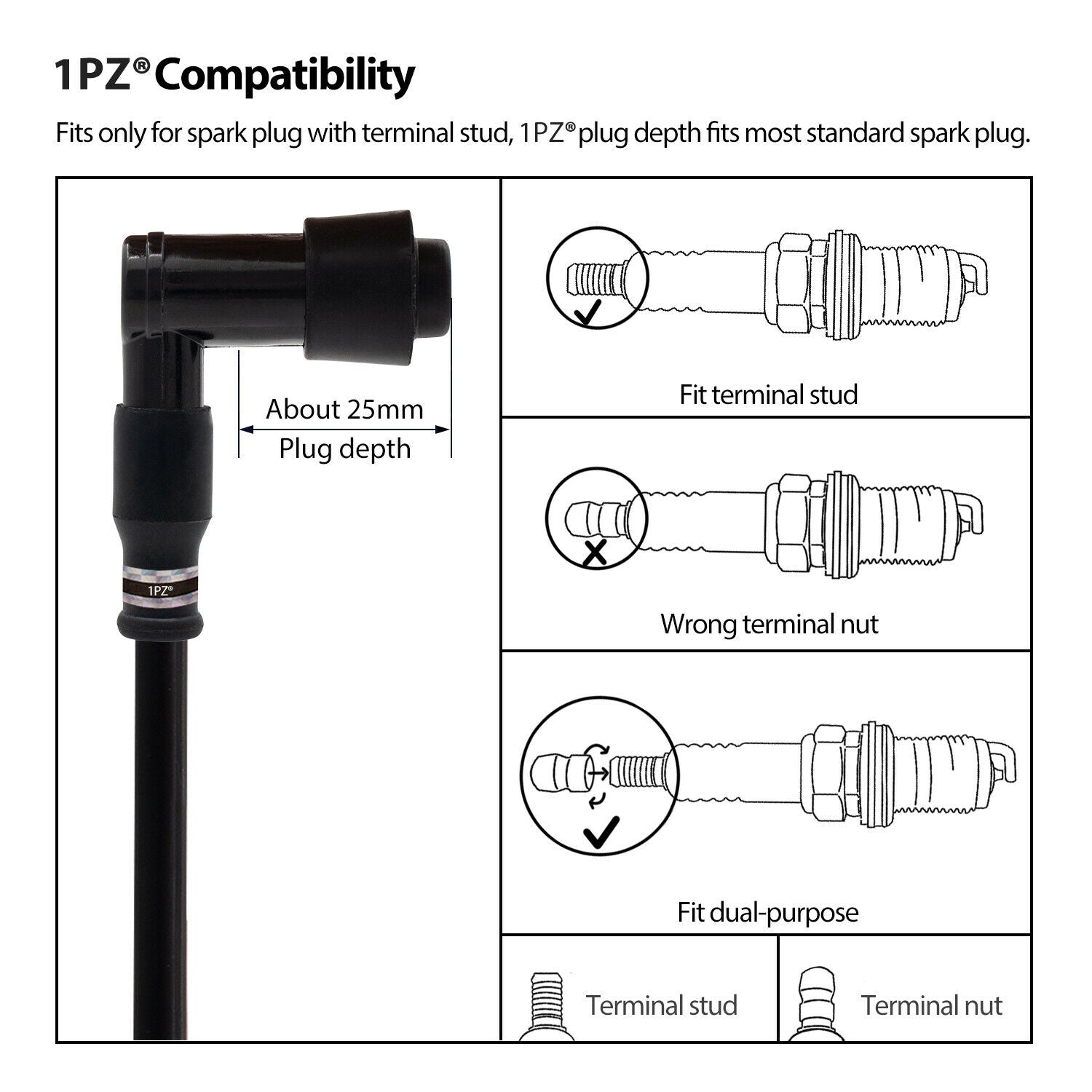

The spark plug cap is removable, just twist it off, and can be used on any other different degree spark plug caps.
If Spark Plug Cap is defective or you needed a different degree Spark Plug Cap.
Just twist it off and reuse your old Spark Plug Cap or any others! Thank you!
 Use a multimeter:

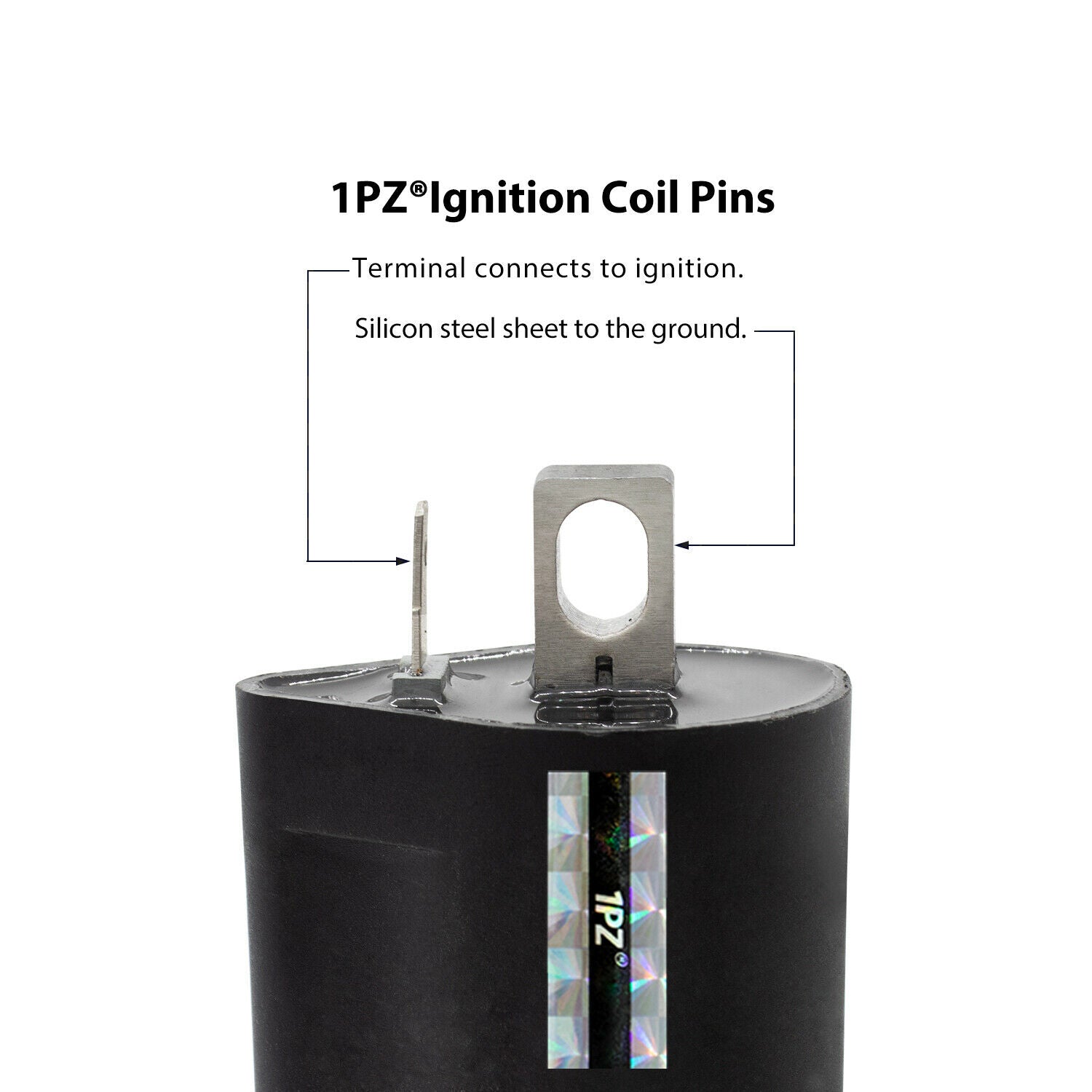

Primary resistance test, attach both positive multimeter lead and negative multimeter lead on the primary sides(input sides of the ignition coil).
Secondary resistance test, negative lead on the output side(wire without the spark plug cap)
and positive lead on the primary sides (both primary sides should get the same reading on the multimeter).
Now you can twist the spark plug cap(or your old cap) back on(tightly) to do the secondary resistance test again.
It should add another 5-10k ohms to the reading.
 Fit Models:
2003 Yamaha YZ125 --
2002 Yamaha YZ125 --
2001 Yamaha YZ125 --
2000 Yamaha YZ125 --
1999 Yamaha YZ125 --
1998 Yamaha YZ125 --
1996 Yamaha YZ125 --
1997 Yamaha YZ125 --
1995 Yamaha YZ125 --
1994 Yamaha YZ125 --
1993 Yamaha YZ125 --
1992 Yamaha YZ125 --
1991 Yamaha YZ125 --
1990 Yamaha YZ125 --
2004 Yamaha YZ250 --
2003 Yamaha YZ250 --
2002 Yamaha YZ250 --
2001 Yamaha YZ250 --
2000 Yamaha YZ250 --
1999 Yamaha YZ250 --
1998 Yamaha YZ250 --
1997 Yamaha YZ250 --
1996 Yamaha YZ250 --
1995 Yamaha YZ250 --
1994 Yamaha YZ250 --
1993 Yamaha YZ250 --
1992 Yamaha YZ250 --
1991 Yamaha YZ250 --
1990 Yamaha YZ250 --
1989 Yamaha YZ250 --
1988 Yamaha YZ490 --
1987 Yamaha YZ490 --
1986 Yamaha YZ490 --
1985 Yamaha YZ490 --
1984 Yamaha YZ490 --
1983 Yamaha YZ490 --
2001 Yamaha YZ80 --
2000 Yamaha YZ80 --
1999 Yamaha YZ80 --
1998 Yamaha YZ80 --
1997 Yamaha YZ80 --
1996 Yamaha YZ80 --
1995 Yamaha YZ80 --
1994 Yamaha YZ80 --
1993 Yamaha YZ80 --
1992 Yamaha YZ80 --
1991 Yamaha YZ80 --
1990 Yamaha YZ80 --
1989 Yamaha YZ80 --
1988 Yamaha YZ80 --
1987 Yamaha YZ80 --
1986 Yamaha YZ80 --
1985 Yamaha YZ80 --
 This Package Includes:

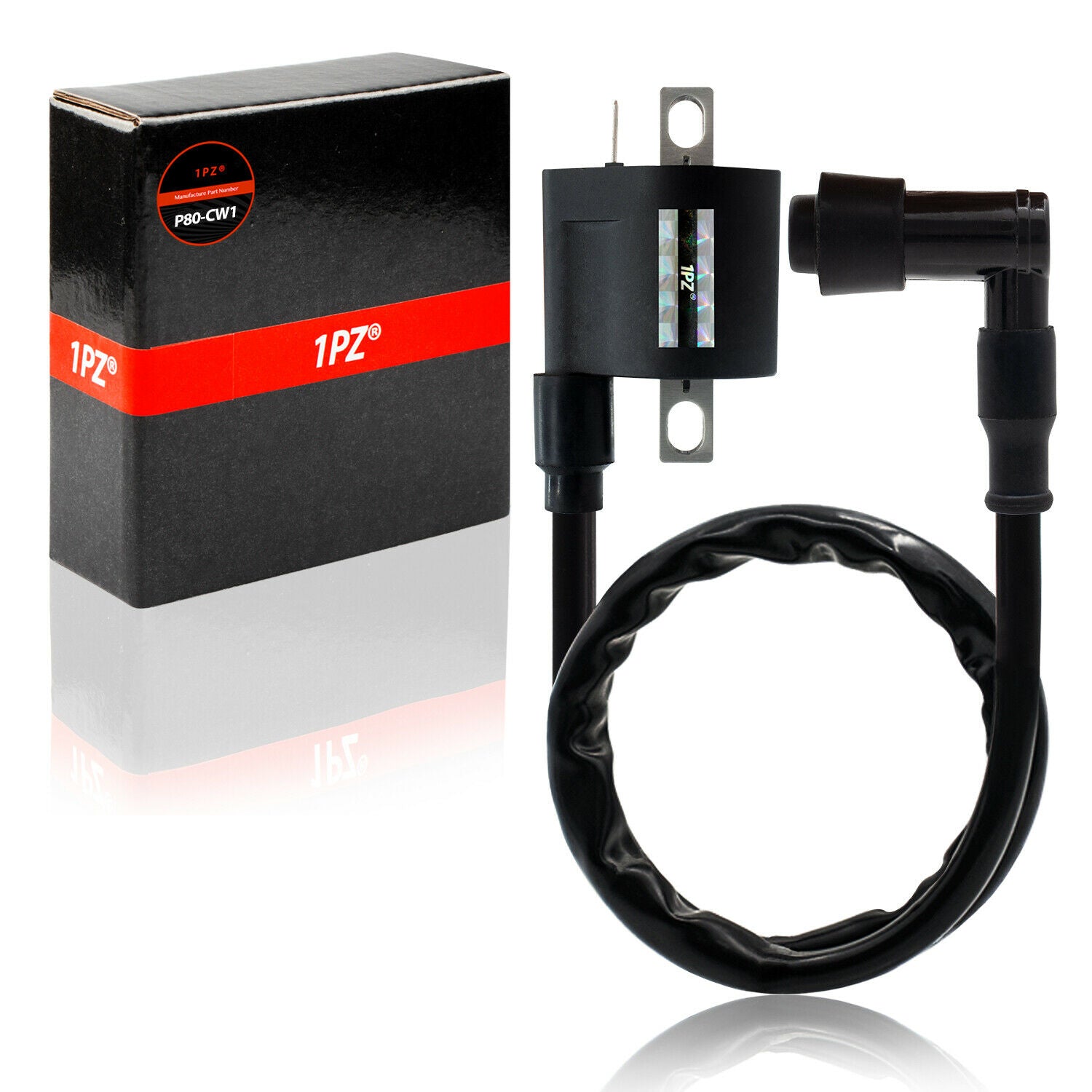

1 x Ignition Coil
▶ Quality Ensured:
30 Days Warranty, Money Back Guarantee, No-Risk, No Hassle
They Are Nicely Packed In A 1PZ Brand Gift Box. We Make Sure Your Items Will Be Delivered Safely.
