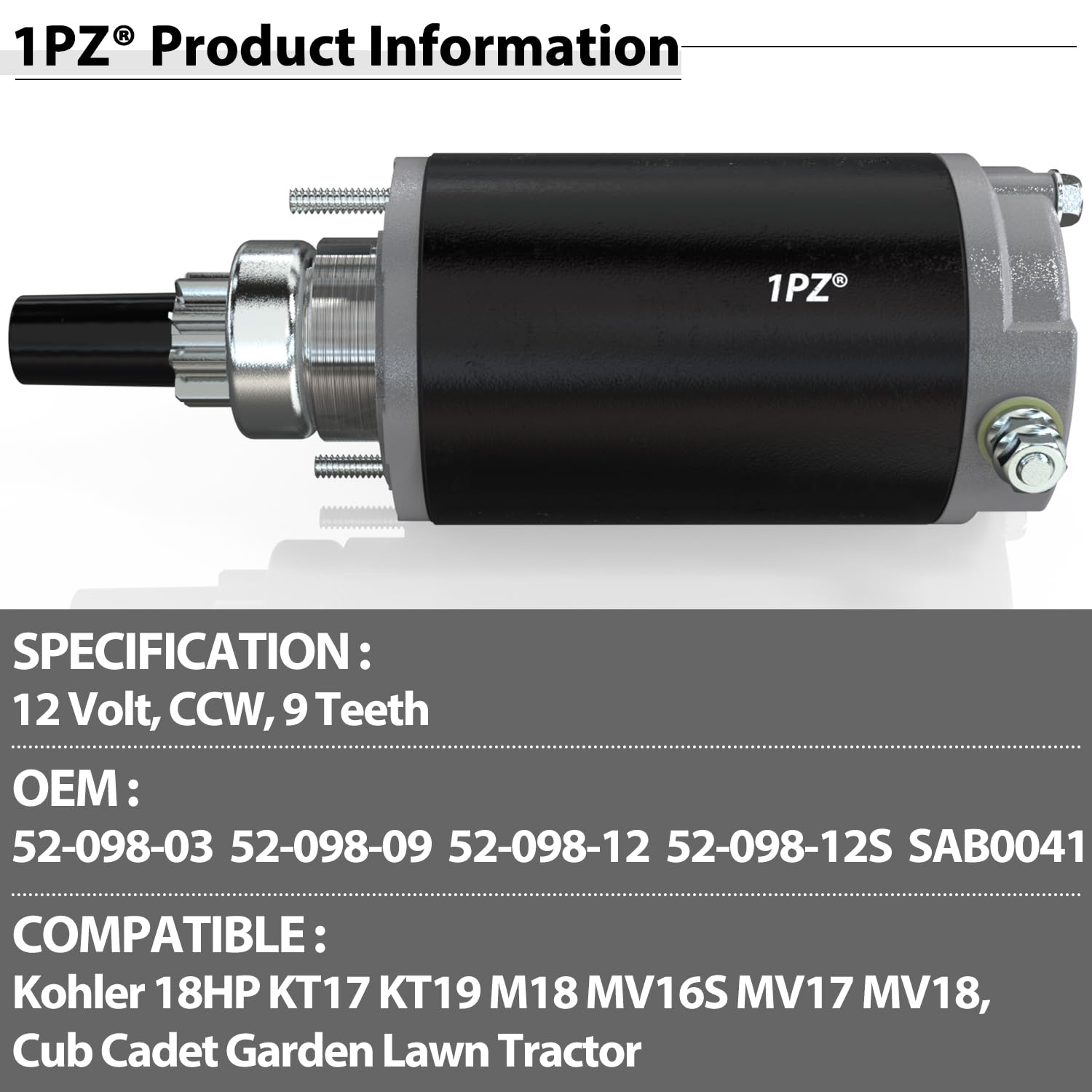

Replacement electric starter motor for select Kohler KT17, KT19, M18, MV16S, MV17 and MV18 engines used in Cub Cadet and compatible lawn equipment.
Listed applications
Catalog fitment includes select Cub Cadet 682, 782, 784 and 1400–1800-series tractors, Kohler air-cooled engines and Toro HMR-1600 applications. Production changes can affect fitment.
Reference numbers
- Kohler 52-098-03, 52-098-09, 52-098-12 and 52-098-12-S
- Lester 5757
- J&N 410-21008
- Arrowhead SAB0041
- United Technologies 1770540, 1819040 and related listed interchanges
Package contents

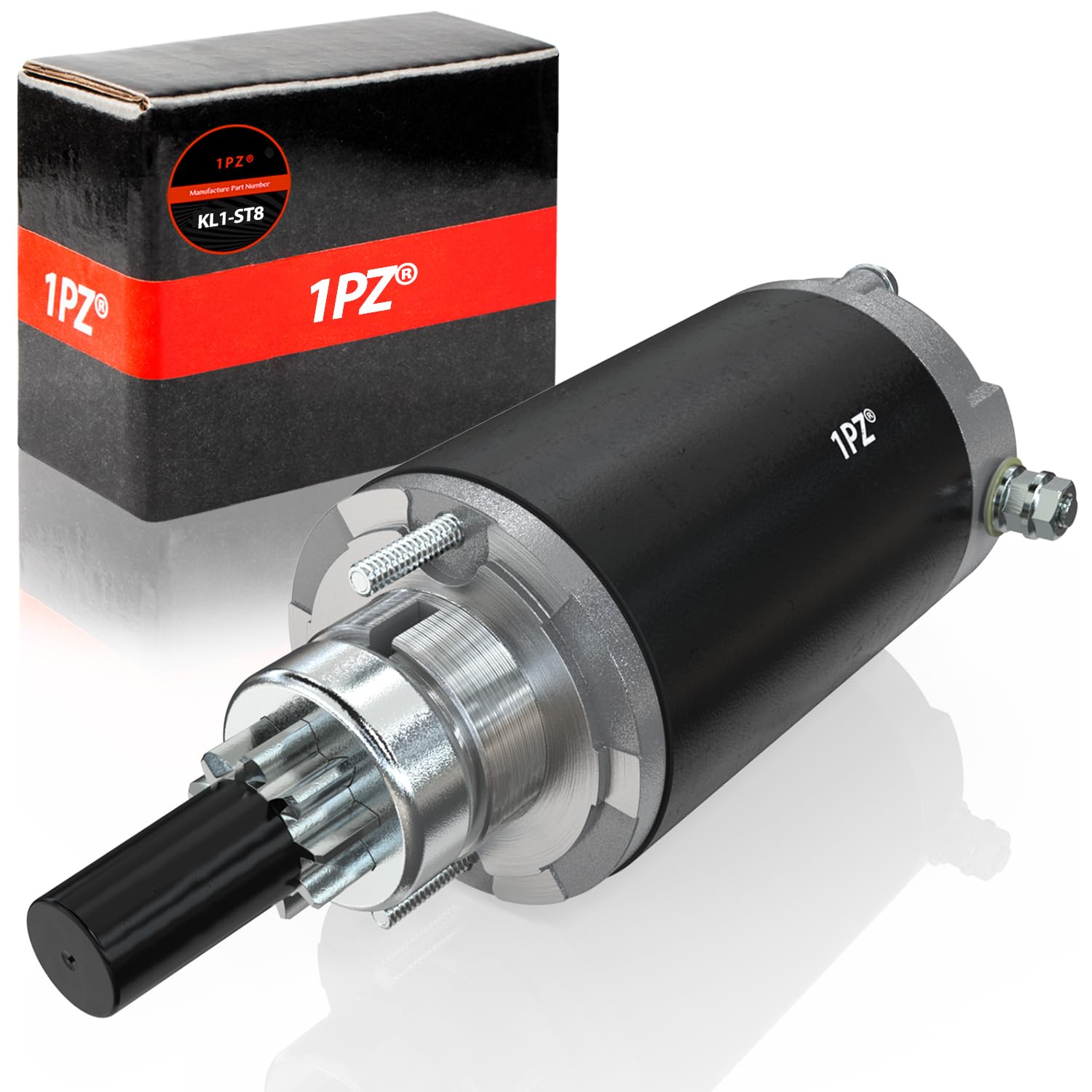

- 1 starter motor in 1PZ branded packaging
Verify before ordering
- Engine model and specification code
- Original starter/reference number

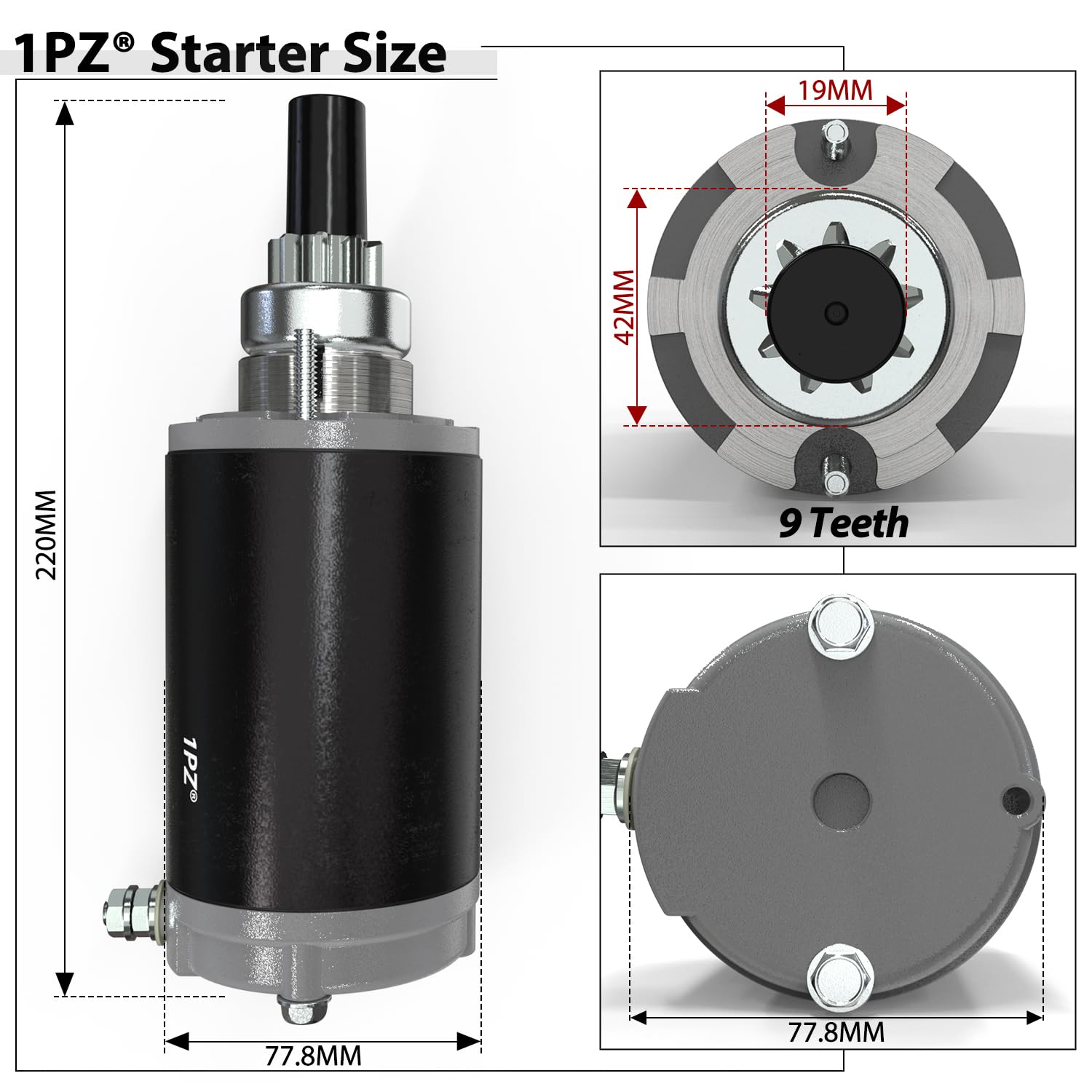

- Gear tooth count, diameter and rotation
- Mounting pattern and flange dimensions
- Terminal position and available clearance
Installation note: Disconnect the battery before service. Compare the starter and gear with the original, clean mounting surfaces, secure wiring away from moving parts and follow the equipment manufacturer’s torque procedure.
