Regular price $21.24

  This will replace ignitions using a Points Ignition, and which Coil and CDI are two separate parts.
 Specifications:
120 Degree Elbow
Voltage: 6 or 12 volts
Single Output
Mounting points (center to center): 57mm (2 1/4")
Spark plug cap resistance: ≈4.91KΩ

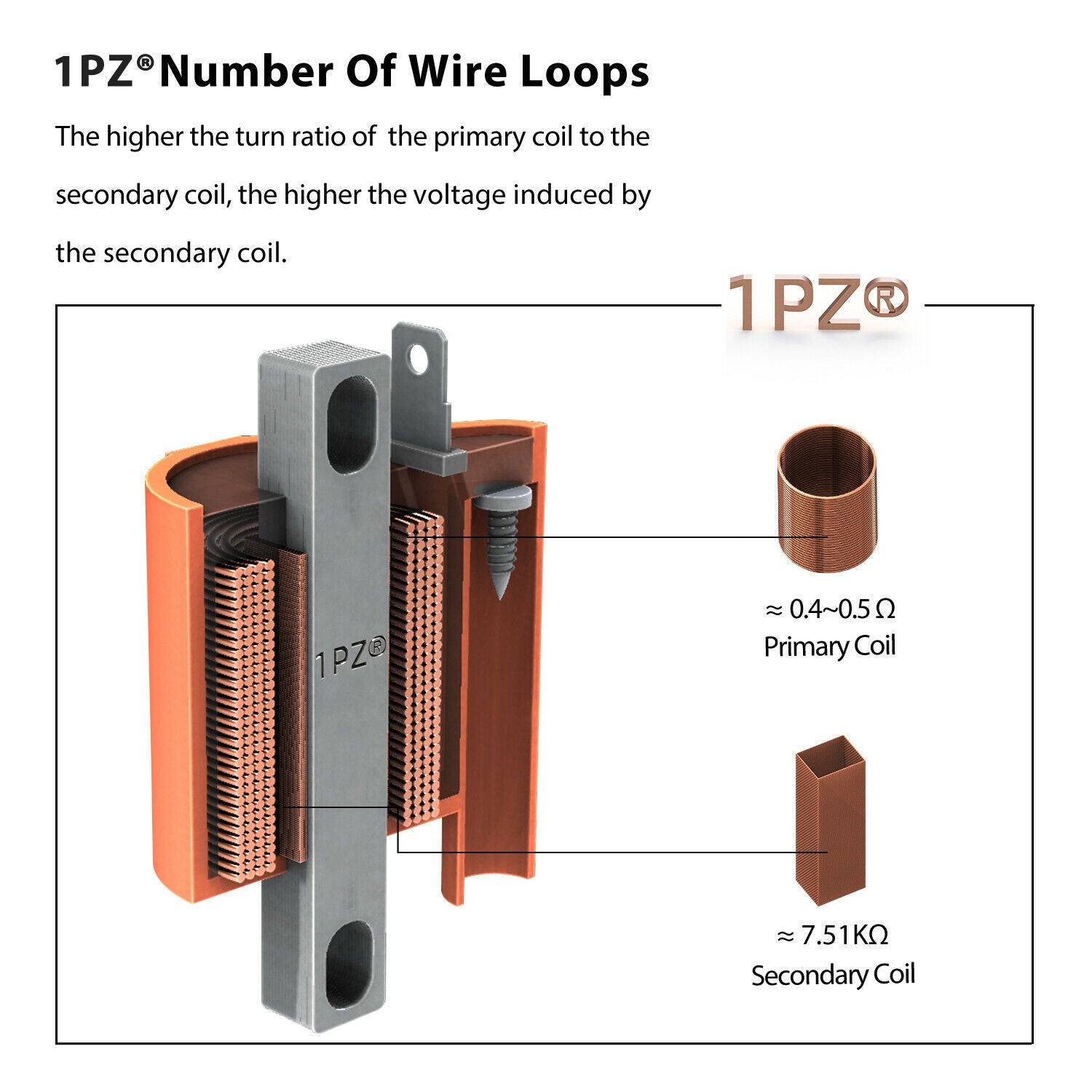

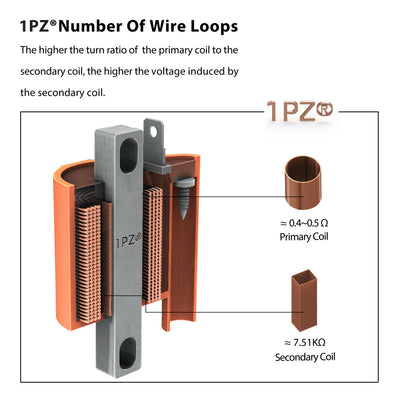

Measuring 1PZ primary coil: ≈0.4~0.5Ω
Measuring 1PZ secondary coil: ≈7.61KΩ
 Note:

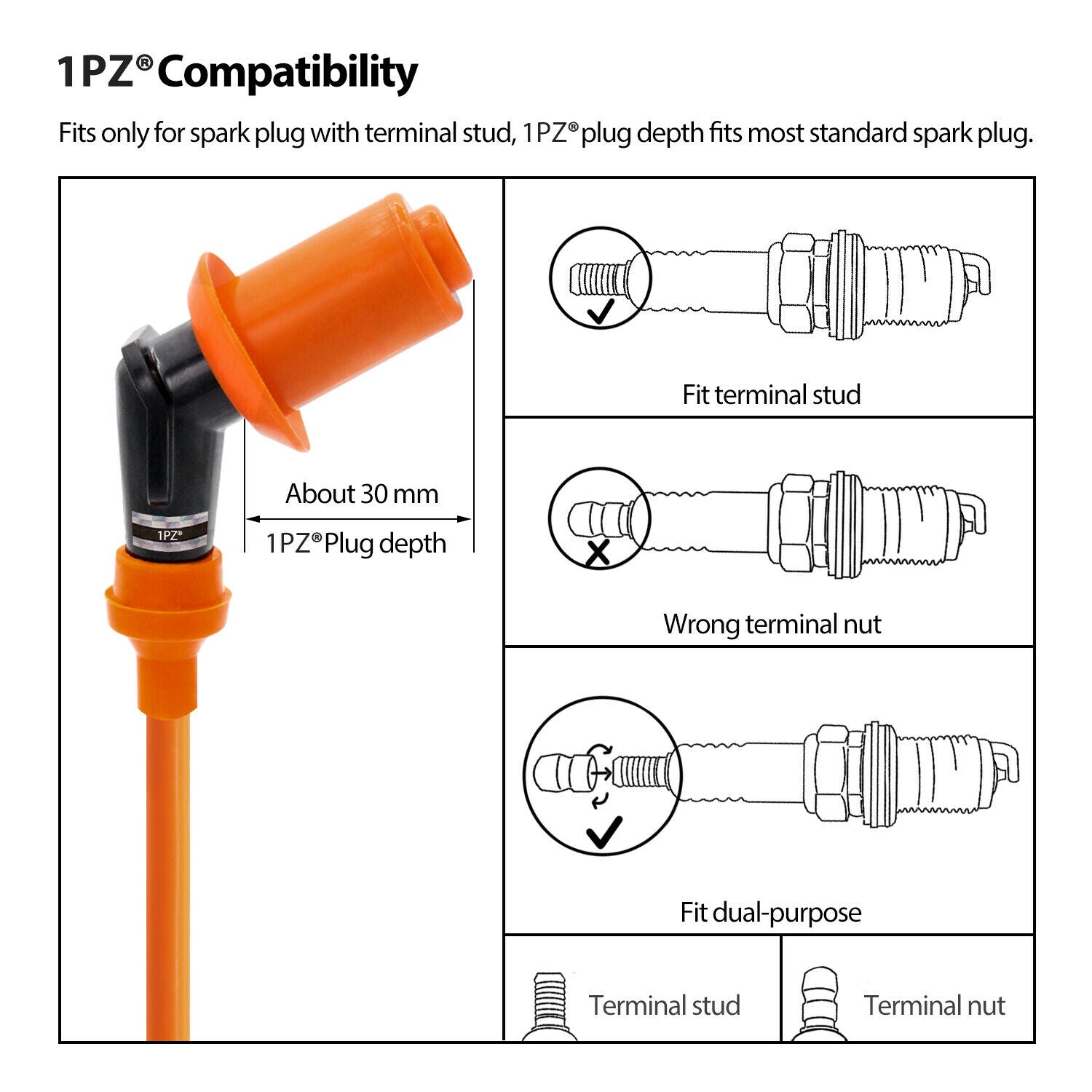

Comes with a Free 120 Degree Cap.
If you have the longer or different cap you may have to re-use your exciting cap.
Just unscrews it if you don't need it.
Fits:
2003 Kawasaki KX60 --
2002 Kawasaki KX60 --
2001 Kawasaki KX60 --
2000 Kawasaki KX60 --
1999 Kawasaki KX60 --
1998 Kawasaki KX60 --
1997 Kawasaki KX60 --
1996 Kawasaki KX60 --
1995 Kawasaki KX60 --
1994 Kawasaki KX60 --
1993 Kawasaki KX60 --
1992 Kawasaki KX60 --
1991 Kawasaki KX60 --
1990 Kawasaki KX60 --
1989 Kawasaki KX60 --
1988 Kawasaki KX60 --
1987 Kawasaki KX60 --
1986 Kawasaki KX60 --
1985 Kawasaki KX60 --
1984 Kawasaki KX60 --
1983 Kawasaki KX60 --
2016 Kawasaki KX65 --
2015 Kawasaki KX65 --
2014 Kawasaki KX65 --
2013 Kawasaki KX65 --
2012 Kawasaki KX65 --
2011 Kawasaki KX65 --
2009 Kawasaki KX65 --
2009 Kawasaki KX65 Monster Energy
2008 Kawasaki KX65 --
2007 Kawasaki KX65 --
2006 Kawasaki KX65 --
2005 Kawasaki KX65 --
2004 Kawasaki KX65 --
2003 Kawasaki KX65 --
2002 Kawasaki KX65 --
2001 Kawasaki KX65 --
2000 Kawasaki KX65 --
2000 Kawasaki KX80 --
1999 Kawasaki KX80 --
1998 Kawasaki KX80 --
1997 Kawasaki KX80 --
1996 Kawasaki KX80 --
1995 Kawasaki KX80 --
1994 Kawasaki KX80 --
1994 Kawasaki KX80 Big Wheel
1993 Kawasaki KX80 --
1993 Kawasaki KX80 Big Wheel
1992 Kawasaki KX80 --
1992 Kawasaki KX80 Big Wheel
1991 Kawasaki KX80 --
1991 Kawasaki KX80 Big Wheel
1990 Kawasaki KX80 --
1990 Kawasaki KX80 Big Wheel
1989 Kawasaki KX80 --
1989 Kawasaki KX80 Big Wheel
1988 Kawasaki KX80 --
1988 Kawasaki KX80 Large Wheel
1987 Kawasaki KX80 --
1987 Kawasaki KX80 Large Wheel
1986 Kawasaki KX80 --
1985 Kawasaki KX80 --
1984 Kawasaki KX80 --
1983 Kawasaki KX80 --
1982 Kawasaki KX80 --
1981 Kawasaki KX80 --
1980 Kawasaki KX80 --
1979 Kawasaki KX80 --
2016 Kawasaki KX85 --
2015 Kawasaki KX85 --
2014 Kawasaki KX85 --
2013 Kawasaki KX85 --
2012 Kawasaki KX85 --
2011 Kawasaki KX85 --
2010 Kawasaki KX85 --
2009 Kawasaki KX85 --
2009 Kawasaki KX85 Monster Energy
2008 Kawasaki KX85 --
2007 Kawasaki KX85 --
2006 Kawasaki KX85 --
2005 Kawasaki KX85 --
2004 Kawasaki KX85 --
2003 Kawasaki KX85 --
2002 Kawasaki KX85 --
2001 Kawasaki KX85 --
2016 Kawasaki KX100 --
2015 Kawasaki KX100 --
2014 Kawasaki KX100 --
2013 Kawasaki KX100 --
2012 Kawasaki KX100 --
2011 Kawasaki KX100 --
2009 Kawasaki KX100 --
2009 Kawasaki KX100 Monster Energy
2008 Kawasaki KX100 --
2007 Kawasaki KX100 --
2006 Kawasaki KX100 --
2005 Kawasaki KX100 --
2004 Kawasaki KX100 --
2003 Kawasaki KX100 --
2002 Kawasaki KX100 --
2001 Kawasaki KX100 --
2000 Kawasaki KX100 --
1999 Kawasaki KX100 --
1998 Kawasaki KX100 --
1997 Kawasaki KX100 --
1996 Kawasaki KX100 --
1995 Kawasaki KX100 --
2005 Kawasaki KX125 --
2004 Kawasaki KX125 --
2003 Kawasaki KX125 --
2002 Kawasaki KX125 --
2001 Kawasaki KX125 --
2000 Kawasaki KX125 --
1999 Kawasaki KX125 --
1998 Kawasaki KX125 --
1997 Kawasaki KX125 --
1996 Kawasaki KX125 --
1995 Kawasaki KX125 --
1994 Kawasaki KX125 --
1993 Kawasaki KX125 --
1992 Kawasaki KX125 --
1991 Kawasaki KX125 --
1990 Kawasaki KX125 --
1989 Kawasaki KX125 --
1988 Kawasaki KX125 --
1987 Kawasaki KX125 --
1986 Kawasaki KX125 --
1985 Kawasaki KX125 --
1984 Kawasaki KX125 --
1983 Kawasaki KX125 --
1982 Kawasaki KX125 --
1981 Kawasaki KX125 --
1980 Kawasaki KX125 --
1979 Kawasaki KX125 --
1978 Kawasaki KX125 --
1977 Kawasaki KX125 --
1976 Kawasaki KX125 --
1975 Kawasaki KX125 --
1974 Kawasaki KX125 --
2013 Kawasaki KX250 --
2012 Kawasaki KX250 --
2007 Kawasaki KX250 --
2006 Kawasaki KX250 --
2005 Kawasaki KX250 --
2004 Kawasaki KX250 --
2003 Kawasaki KX250 --
2002 Kawasaki KX250 --
2001 Kawasaki KX250 --
2000 Kawasaki KX250 --
1999 Kawasaki KX250 --
1998 Kawasaki KX250 --
1997 Kawasaki KX250 --
1996 Kawasaki KX250 --
1995 Kawasaki KX250 --
1994 Kawasaki KX250 --
1993 Kawasaki KX250 --
1992 Kawasaki KX250 --
1991 Kawasaki KX250 --
1990 Kawasaki KX250 --
1989 Kawasaki KX250 --
1988 Kawasaki KX250 --
1987 Kawasaki KX250 --
1986 Kawasaki KX250 --
1985 Kawasaki KX250 --
1984 Kawasaki KX250 --
1983 Kawasaki KX250 --
1982 Kawasaki KX250 --
1981 Kawasaki KX250 --
1980 Kawasaki KX250 --
1979 Kawasaki KX250 --
1978 Kawasaki KX250 --
1977 Kawasaki KX250 --
1976 Kawasaki KX250 --
1975 Kawasaki KX250 --
1974 Kawasaki KX250 --
2016 Kawasaki KX250F --
2015 Kawasaki KX250F --
2014 Kawasaki KX250F --
2013 Kawasaki KX250F --
2012 Kawasaki KX250F --
2011 Kawasaki KX250F --
2010 Kawasaki KX250F --
2009 Kawasaki KX250F --
2009 Kawasaki KX250F Monster Energy
2008 Kawasaki KX250F --
2007 Kawasaki KX250F --
2006 Kawasaki KX250F --
2005 Kawasaki KX250F --
2004 Kawasaki KX250F --
1988 Kawasaki KX250F --
2005 Kawasaki KX250R --
2010 Kawasaki KX300 --
2013 Kawasaki KX450 --
2012 Kawasaki KX450 --
1974 Kawasaki KX450 --
2016 Kawasaki KX450F --
2015 Kawasaki KX450F --
2014 Kawasaki KX450F --
2013 Kawasaki KX450F --
2012 Kawasaki KX450F --
2011 Kawasaki KX450F --
2010 Kawasaki KX450F --
2009 Kawasaki KX450F --
2009 Kawasaki KX450F Monster Energy
2008 Kawasaki KX450F --
2007 Kawasaki KX450F --
2006 Kawasaki KX450F --
2004 Kawasaki KX500 --
2003 Kawasaki KX500 --
2002 Kawasaki KX500 --
2001 Kawasaki KX500 --
2000 Kawasaki KX500 --
1999 Kawasaki KX500 --
1998 Kawasaki KX500 --
1997 Kawasaki KX500 --
1996 Kawasaki KX500 --
1995 Kawasaki KX500 --
1994 Kawasaki KX500 --
1993 Kawasaki KX500 --
1992 Kawasaki KX500 --
1991 Kawasaki KX500 --
1990 Kawasaki KX500 --
1989 Kawasaki KX500 --
1988 Kawasaki KX500 --
1987 Kawasaki KX500 --
1986 Kawasaki KX500 --
1985 Kawasaki KX500 --
1984 Kawasaki KX500 --
1983 Kawasaki KX500 --
 This Package Includes:

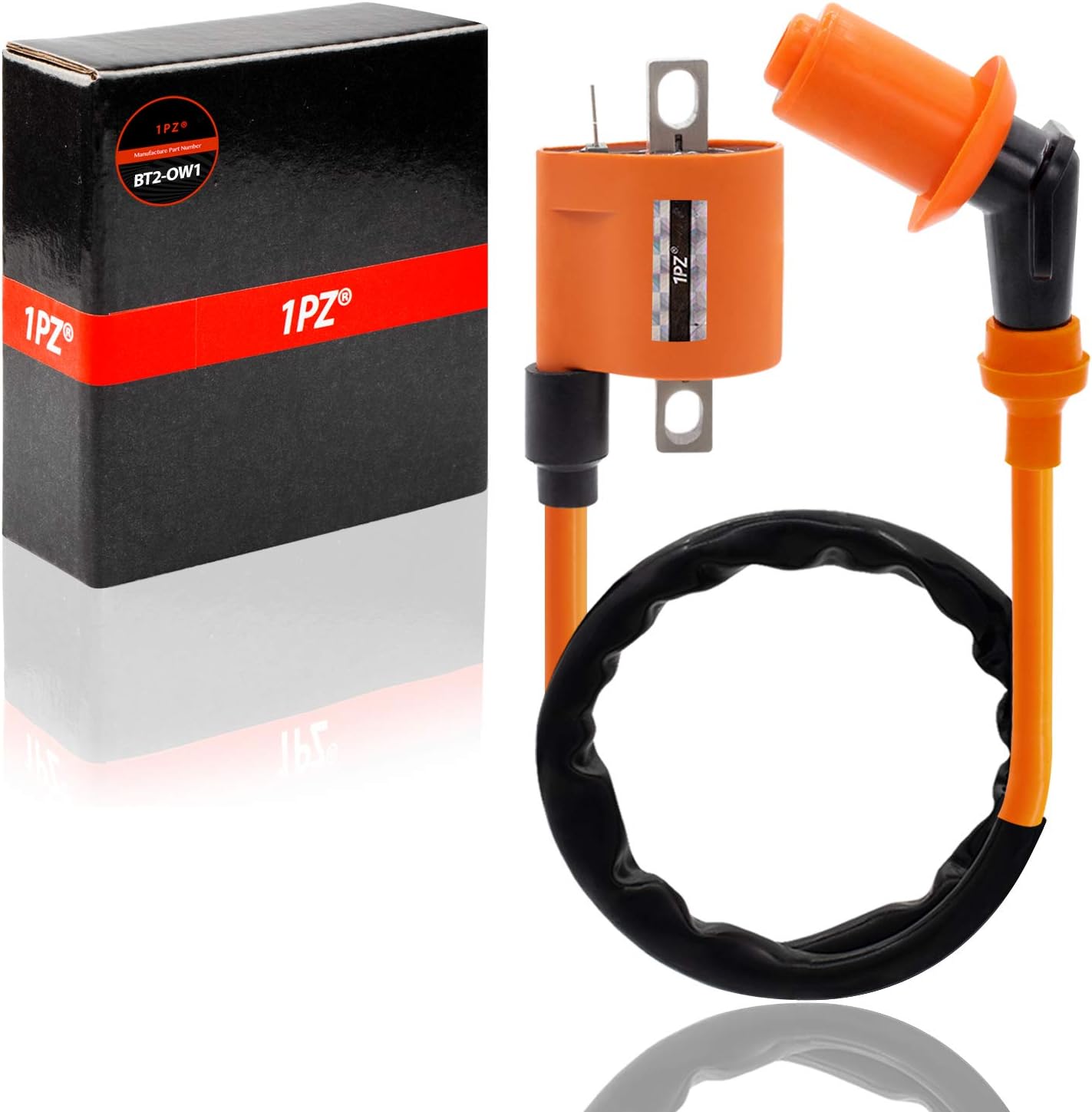

1 x Ignition Coil With Wire And Spark Plug Cap 120 Degree
